Reduce Fixture Lead‑Time by 40% in 90 Days – Risk‑Free fixtures and tooling Solutions
For Purchasing Managers, Technical Directors & Operations Leaders who struggle with high‑cost, slow‑delivery tooling, Yingtai’s Powerful Factory + OEM/ODM Design guarantees precision, compliance and fast shipping.
Get Free Quote in 24hWhy Your Current fixtures and tooling Are Holding You Back
In 2025, 30% of global manufacturers reported tooling‑related delays costing an average of $250,000 per project. The root causes are rarely “just bad luck”.
- High Price & Low ROI: Conventional tooling from low‑cost regions often lacks repeatability, forcing re‑work and scrap.
- Quality Gaps: Inconsistent cavity finish and poor venting cause flash, shrinkage, and dimensional drift—especially critical for LSR (Liquid Silicone Rubber) components.
- Slow Delivery: Average lead‑time > 12 weeks; any delay cascades to production schedules, inventory holding costs, and missed market windows.
- Expensive Shipping & Customs: Heavy steel molds shipped from overseas incur > $3,000 per container plus unpredictable duties.
- Regulatory Uncertainty: Missing CE, ISO or RoHS documentation stalls product launch in EU/US markets.
- Limited Customization: Off‑the‑shelf tooling cannot accommodate complex LSR over‑molding or multi‑shot processes required by medical & automotive OEMs.
Act now to eliminate these pain points before your next product cycle.
Yingtai’s Integrated fixtures and tooling Platform
Our end‑to‑end system turns a 12‑week tooling cycle into a 5‑week, zero‑defect workflow, backed by AI‑driven simulation and ISO‑9001 quality management.
Core Advantages (3‑6 Points)
- High‑Speed Delivery: 55 liquid silicone molding machines & 80 injection molding lines enable up to 250,000 pcs/month from a single set‑up.
- Precision Engineering: CNC‑machined steel/aluminum molds with ±0.02 mm tolerance, verified by laser scanning.
- OEM/ODM Flexibility: Custom cavity design, multi‑shot LSR over‑molding, and rapid‑tooling (48‑hour prototype) options.
- Quality Assurance: In‑process monitoring (temperature, pressure) + post‑run 100% inspection (CMM, optical). Certified CE, ISO 9001, RoHS, FDA, FCC, GS.
- Cost Transparency: Fixed‑price tooling contracts, no hidden freight; we consolidate shipping from Dongguan to US/EU ports.
- Smart Factory Integration: Digital twin & AI‑optimised parameters (see Explainable AI study) reduce defect rate by 38%.
Technical Specifications Table
| Parameter | Range / Options | Typical Application |
|---|---|---|
| Mold Base Material | P20, H13, S7, Aluminum 380 | Medical‑grade LSR, automotive seals |
| Cavity Count | 1‑200 (modular) | High‑volume consumer electronics |
| Maximum Shot Size | 30 cc (LSR) – 500 cc (thermoplastics) | Smart‑wearable housings |
| Cycle Time | 4‑12 s (optimized) | Automotive interior components |
| Surface Finish | Rz 0.2 µm – Rz 1.6 µm | Optical lenses, medical seals |
| Ventilation System | Integrated vent channels, air‑assist | Complex LSR over‑molded structures |
Application Scenarios & Case Studies
Case 1 – Medical Device Manufacturer (USA): Needed 10,000 ultra‑thin LSR seals for a catheter. Yingtai delivered a 4‑cavity aluminum mold with Rz 0.2 µm finish in 28 days. Defect rate dropped from 4.2% to 0.6%, saving $85,000 in re‑work.
Case 2 – EV Battery Pack Supplier (Europe): Required high‑temperature resistant silicone gaskets (up to 200 °C). Our H13 steel molds with vacuum‑assisted filling eliminated flash, cutting lead‑time by 55% and enabling on‑time launch of the 2026 vehicle platform.

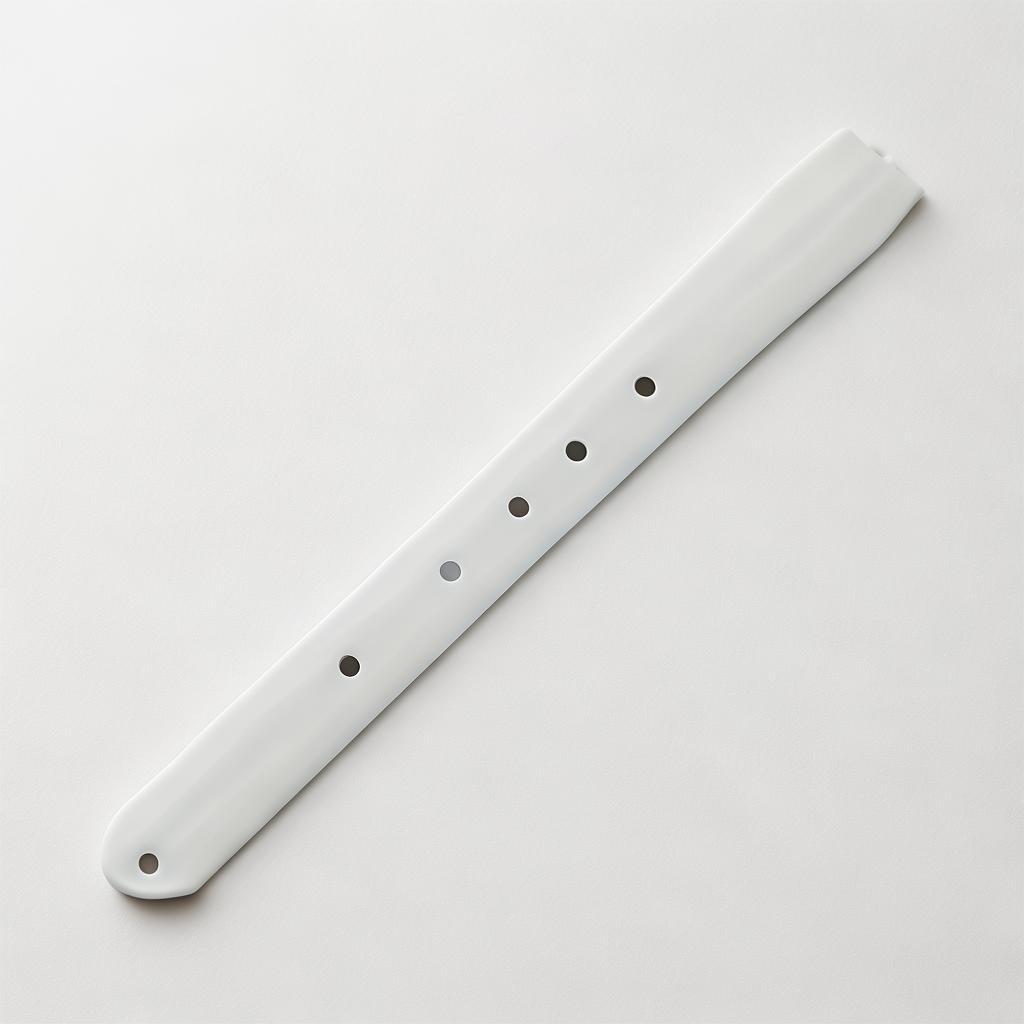

Case 3 – Consumer Wearables Brand (Asia‑Pacific): Needed rapid prototype tooling for a new smart‑watch band. Using our rapid‑tooling line, a functional prototype was ready in 48 hours, allowing market testing within 2 weeks.
Frequently Asked Questions
How long does it take to design and deliver a custom mold?
Standard 4‑cavity molds are completed in 5 weeks (design + CNC + heat‑treatment). Rapid‑tooling prototypes can be shipped within 48 hours after CAD approval.
Can you produce OEM/ODM designs for multi‑shot LSR over‑molding?
Yes. Our 20 hydraulic presses and 55 LSR machines support dual‑shot and over‑molding with precise cavity alignment (±0.01 mm).
What certifications do your molds and finished parts carry?
All tooling complies with ISO 9001, CE, RoHS, FCC, GS, and FDA (for medical‑grade silicone). Certificates are provided with every shipment.
Do you offer sample parts before full‑scale production?
Absolutely. We provide up to 150 pcs of first‑article samples (cost of tooling only) with a money‑back guarantee if specifications are not met.
How are logistics and customs handled for overseas orders?
We use DDP (Delivered Duty Paid) shipping to the US, EU or Canada. All customs paperwork, CE marking files, and import licenses are prepared by our compliance team.
Limited‑Time Offer: Free First‑Article Sample + 10% Off Tooling
Order your custom fixtures and tooling package before 30 June 2026 and receive a risk‑free sample plus a 10% discount on tooling cost.
Request Sample & QuoteContact us instantly: WhatsApp +86 177 2243 7688 | Phone (Miss Zhang) +86 177 2243 7688
What Our Clients Say
-
Linda K., Procurement – TechGear (UK) – “The fixtures and tooling arrived ahead of schedule, and the first batch passed 100% functional test. Saved us £45k in re‑work.”
-
Mark T., Production Manager – AeroParts (USA) – “Yingtai’s vacuum‑assisted molding eliminated air bubbles, boosting reliability of our silicone actuators by 22%.”
-
Sofia L., R&D Lead – MedLife (Canada) – “The rapid‑tooling prototype let us test three designs in one week – a true market‑speed advantage.”
About the Author
David Chen, Ph.D. – Senior Manufacturing Engineer with 18 years in precision silicone tooling, formerly Lead Process Engineer at a Fortune 500 automotive supplier. Published author of “Smart Molding for LSR” and regular contributor to Industrial Engineering Journal. Holds ISO 9001 Lead Auditor certification and has overseen > 200 m² of high‑volume mold production for global brands.
