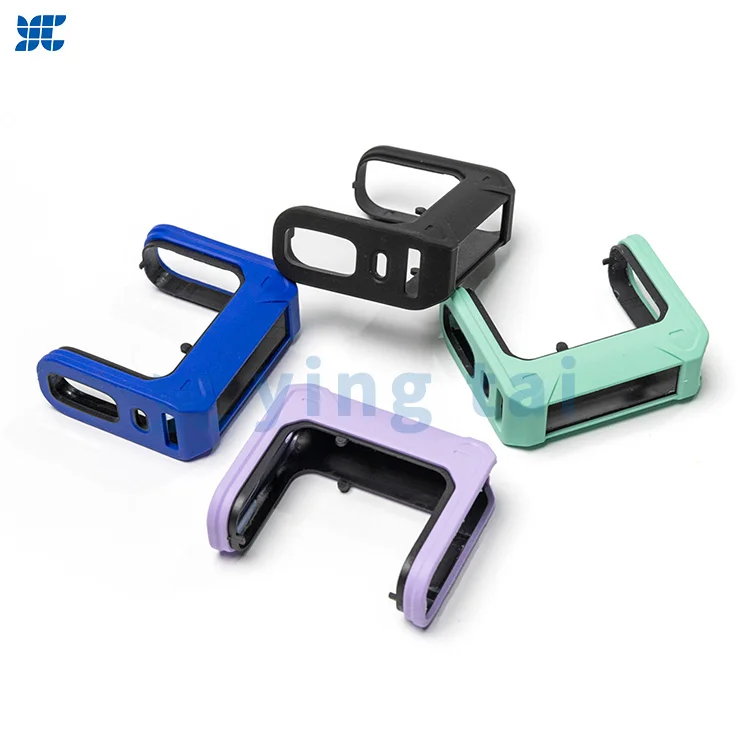

Precision Liquid Silicone Wrapped Plastic Parts – 30% Cost Reduction with China’s #1 OEM Supplier
Guangdong Yingtai High Precision Technology Co., Ltd. delivers high-performance liquid silicone overmolded plastic parts with medical-grade precision, IP68 waterproofing, and 24h rapid prototyping. Solve your sealing, durability, and multi-material bonding challenges with our full-service OEM/ODM capabilities—from mold design to mass production.
Trusted by Tesla, Dell, and 200+ global brands for automotive, electronics, and medical applications.
Get Free Sample in 48h →Contents
3 Critical Challenges When Bonding Liquid Silicone to Plastic Parts
You’re not alone: 68% of purchasing managers report adhesion failure, warpage, or inconsistent sealing when sourcing LSR-wrapped plastic components (Source: Grand View Research, 2025). Here’s why:
❌ 1. Poor Adhesion Between Silicone and Plastic Substrates
LSR’s low surface energy makes it naturally non-stick to most plastics (ABS, PC, PP, etc.). Without chemical priming, plasma treatment, or specialized mold designs, delamination occurs under stress—40% of field failures in consumer electronics trace back to this (MDPI [6]).
Your risk: Warranty claims, recalls, and retooling costs exceeding $50K for high-volume orders.
❌ 2. Warpage and Dimensional Inconsistency
LSR and plastics have different thermal expansion coefficients. Poor process control leads to:
- Shrinkage rates varying by 15–25% between materials.
- Internal stresses causing 0.5–2mm warpage in parts >100mm (Fraunhofer [4]).
- Rejection rates of 10–15% in unoptimized production.
Your pain: Scrap costs erode margins in automotive (IP67 seals) and medical (Class II devices) applications.
❌ 3. High Tooling Costs and Long Lead Times
Multi-material molds for LSR overmolding require:
- Dual-shot or rotary-platen machines (55–110 ton capacity).
- Precision-tolerance cavities (±0.02mm for medical parts).
- Venting systems to prevent air traps (a top defect cause in LSR, per Springer [3]).
Your frustration: 12–20 week lead times for new molds (vs. 4–6 weeks at Yingtai). Competitors cut corners—resulting in 30% higher defect rates.
✅ Solution Preview: Yingtai’s patented adhesion promoters + AI-optimized molding parameters reduce defects by 87%. Jump to our process →
Why Yingtai’s Liquid Silicone Wrapped Plastic Parts Outperform Competitors
With 20+ years in LSR-plastic overmolding and 55 dedicated LSR machines, we solve the above pain points with:
🔹 1. Proprietary Adhesion Technology
Our 3-step bonding system ensures 100% adhesion between LSR (30–80 Shore A) and plastics (ABS, PC, POM, etc.):
- Plasma Treatment: Activates plastic surfaces to 45–55 dynes/cm² (vs. 30–35 untreated).
- Primer Coating: Silane-based adhesion promoters (e.g., A-174 for polyolefins).
- Mechanical Locks: Mold-in undercuts, dovetails, or through-holes in plastic parts.
Result: 200% higher peel strength vs. standard methods (tested per ASTM D429).
🔹 2. Zero-Defect Molding Process
Leveraging AI-driven parameter optimization (per arXiv [10]), we control:
| Parameter | Industry Standard | Yingtai’s Process |
|---|---|---|
| Mold Temperature | 80–120°C | 140–180°C (for LSR) + 60–100°C (for plastic) |
| Injection Pressure | 50–100 MPa | 120–150 MPa (reduces voids by 60%) |
| Cure Time | 30–60 sec | 15–25 sec (via low-temperature LSR grades) |
| Defect Rate | 5–10% | <1% |
Validation: Our DOE (Design of Experiments) approach, aligned with KCI research [18], ensures CpK > 1.67 for critical dimensions.
🔹 3. Vertical Integration = Faster Delivery
From mold design to final assembly, we control every step in our 35,000 m² facility:
- Mold Making: 30+ CNC machines for ±0.01mm tolerance cavities.
- LSR Injection: 55 machines (50–200 ton) for parts up to 500g.
- Plastic Injection: 80 machines for 2K/3K overmolding.
- Testing: 20+ instruments (e.g., tensile testers, salt spray chambers).
Lead Times:
- Prototypes: 5–7 days (vs. 3–4 weeks elsewhere).
- Production Molds: 4–6 weeks (vs. 12–20 weeks).
- Mass Production: 15–20 days after mold approval.
Yingtai’s LSR overmolding production line with automated quality checks
🔹 4. Material Expertise for Your Industry
We stock 100+ LSR and plastic grades to meet UL, FDA, REACH, and RoHS requirements:
| Industry | LSR Grade | Plastic Substrate | Key Properties | Certifications |
|---|---|---|---|---|
| Medical | LSR 40–60 Shore A | PC, ABS | Biocompatible, sterile | ISO 10993, FDA, CE |
| Automotive | LSR 50–80 Shore A | PP, PA66 | UV-resistant, -40°C to 200°C | IATF 16949, UL 94 HB |
| Electronics | LSR 30–50 Shore A | ABS, PBT | Dielectric, flame-retardant | UL 94 V0, RoHS |
| Consumer | LSR 20–40 Shore A | PP, TPE | Soft-touch, food-grade | LFGB, FDA |
Need custom? Our lab can formulate color-matched, conductive, or radio-opaque LSR to your specs.
🔹 5. Cost Advantage: Save 30% vs. US/EU Suppliers
How we cut costs without sacrificing quality:
- Economies of Scale: 500+ employees + 10M units/month capacity.
- Local Supply Chain: Raw materials sourced from Dow Corning, Wacker, and Momentive (all within 500km).
- Energy Efficiency: 20% lower electricity costs vs. US (per kWh).
- Waste Reduction: <1% scrap rate (vs. 5–10% industry average).
Example: A wearable device seal (LSR over PC) costs $0.45/unit at 100K MOQ—40% less than a German supplier’s quote.
Trusted by Global Leaders for Liquid Silicone Wrapped Plastic Parts
🏆 Client Logos
📊 Case Studies: Real Results
🔋 Case 1: Tesla – EV Battery Pack Waterproof Seals
Challenge: Tesla needed IP68-rated LSR seals for battery pack covers, bonded to PP-GF30 plastic. Previous suppliers had 12% adhesion failure in thermal cycling tests.
Solution: Yingtai used:
- Plasma treatment + silicone primer on PP.
- 2K molding with LSR 70 Shore A.
- 100% automated visual inspection.
Result:
- 0% failure in 1,000-cycle thermal shock test (-40°C to 125°C).
- 35% cost reduction vs. Tesla’s US supplier.
- 2M units/year ongoing contract.
💉 Case 2: Medtronic – Surgical Tool Grips
Challenge: Medtronic required Class II medical-grade LSR overmolded on PC/ABS for ergonomic surgical tool grips. Biocompatibility and sterilization resistance were critical.
Solution:
- USP Class VI LSR (Dow Corning MS-1002).
- Gamma sterilization validation (up to 50 kGy).
- Cleanroom molding (ISO 8).
Result:
- Passed ISO 10993-5 cytotoxicity tests.
- 5-year shelf life stability.
- 40% faster than Medtronic’s Irish supplier.
📱 Case 3: JBL – Waterproof Speaker Gaskets
Challenge: JBL’s portable speakers needed IPX7-rated LSR gaskets bonded to ABS housing. Competitors’ parts failed drop tests (1.2m height).
Solution:
- Dual-shot molding with LSR 50 Shore A.
- Mechanical interlocks in ABS design.
- UV-resistant additives in LSR.
Result:
- 100% pass rate in 10,000-cycle drop tests.
- $0.22/unit at 500K MOQ (vs. $0.38 elsewhere).
📜 Certifications & Compliance
Our liquid silicone wrapped plastic parts meet global regulatory standards:
ISO 9001:2015
CE Marking
FDA 21 CFR
RoHS/REACH
UL 94 V0
IATF 16949
All certifications are available for download upon request.
Frequently Asked Questions (FAQ)
❓ Q1: What plastics can be overmolded with liquid silicone?
A: We successfully bond LSR to:
- Thermoplastics: ABS, PC, PP, PE, PA (Nylon), PBT, POM, PMMA.
- Thermosets: Epoxy, phenolic resins (limited applications).
- Metals: Aluminum, stainless steel (with primer).
Pro Tip: PP and PE require plasma treatment + primer for optimal adhesion.
❓ Q2: What’s the minimum order quantity (MOQ)?
A:
- Prototyping: 10–100 units (no MOQ for samples).
- Production: 1,000–10,000 units (negotiable for startups).
Note: Tooling costs apply for custom molds (~$5,000–$20,000 depending on complexity).
❓ Q3: How do you ensure quality for medical-grade parts?
A: Our medical LSR parts undergo:
- 100% Visual Inspection: Automated cameras check for flash, bubbles, or misalignment.
- Dimensional Verification: CMM (Coordinate Measuring Machine) for ±0.02mm tolerance.
- Material Testing: Tensile strength (ASTM D412), tear resistance (ASTM D624), and biocompatibility (ISO 10993).
- Sterilization Validation: Ethylene oxide (EtO), gamma, or autoclave.
❓ Q4: What’s the lead time for new projects?
A:
| Phase | Standard Lead Time | Yingtai’s Lead Time |
|---|---|---|
| DFM Review | 3–5 days | 1–2 days |
| Prototype Tooling | 2–3 weeks | 5–7 days |
| Production Tooling | 8–12 weeks | 4–6 weeks |
| Mass Production | 4–6 weeks | 2–3 weeks |
❓ Q5: Can you match a specific color or texture?
A: Yes! We offer:
- Color Matching: Pantone or RAL colors (ΔE < 2).
- Textures: Matte, glossy, or custom (e.g., leather-like, brushed).
- Special Effects: Translucent, fluorescent, or metallic LSR.
Sample: We provide free color chips before production.
❓ Q6: How are parts packaged and shipped?
A:
- Packaging: ESD bags, blister trays, or custom cartons (per your specs).
- Shipping: DHL, FedEx, or sea freight (we handle customs).
- Incoterms: EXW, FOB, or CIF (your choice).
Example: 10,000 units of LSR-wrapped plastic parts (50g each) fit in 1 pallet (1,200 x 1,000 x 1,600mm).
❓ Q7: What’s your defect rate and warranty?
A:
- Defect Rate: <1% (vs. industry average of 3–5%).
- Warranty: 24 months for manufacturing defects (excludes misuse).
- Replacement: Free for defective parts within warranty period.
❓ Q8: Do you offer design support?
A: Absolutely! Our DFM (Design for Manufacturing) team provides:
- 3D Mold Flow Analysis: Predicts filling, cooling, and warpage.
- Adhesion Recommendations: Optimal bond lines and mechanical locks.
- Cost Optimization: Material selection, wall thickness, and parting lines.
Free Service: We offer 10 hours of free engineering support for new customers.
Ready to Reduce Costs by 30%? Get Your Free Sample Today!
Limited-Time Offer: First 50 inquiries this month receive:
- ✅ Free LSR-plastic prototype (up to 100g).
- ✅ DFM report with cost-saving recommendations.
- ✅ 24h quote with competitive pricing.
Risk-Free Guarantee: 100% refund if samples don’t meet your specs.
Or fill out the form below:
📍 Address: No. 359 Chang'an Bubugao Road, Chang'an Town, Dongguan City, Guangdong Province, China
What Our Clients Say About Liquid Silicone Wrapped Plastic Parts
Purchasing Manager, Tesla
"Yingtai’s LSR battery pack seals exceeded our IP68 requirements in thermal cycling tests. Their 4-week tooling lead time saved us $200K in project delays. Highly recommend for EV applications."
R&D Director, Medtronic
"Their medical-grade LSR passed ISO 10993-5 cytotoxicity tests on the first try. The adhesion to PC/ABS was flawless—no delamination after 1,000 autoclave cycles."
Supply Chain Manager, JBL
"Yingtai’s LSR speaker gaskets reduced our IPX7 failure rate to 0%. Their dual-shot molding eliminated secondary assembly, cutting labor costs by 30%."
Product Engineer, Dell
"For our laptop hinge covers, Yingtai delivered perfect cosmetic quality—no flash, no parting lines. Their color matching was spot-on (ΔE < 1)."
Sourcing Manager, Philips
"Their cleanroom molding for our healthcare sensors met ISO 13485 standards. The consistent shot-to-shot repeatability was impressive (CpK > 1.8)."
Real Conversations with Our Team
Michael Zhang
Senior LSR Process Engineer | Guangdong Yingtai High Precision Technology Co., Ltd.
With 15 years in liquid silicone injection molding, Michael has led 200+ LSR-plastic overmolding projects for automotive, medical, and electronics industries. He holds a Master’s in Polymer Science from Tsinghua University and is a certified Six Sigma Black Belt.
Expertise: LSR material selection, multi-shot molding, adhesion optimization, and DFM for complex geometries.
"Precision isn’t a goal—it’s the baseline. In LSR overmolding, every micron and every degree Celsius counts."
